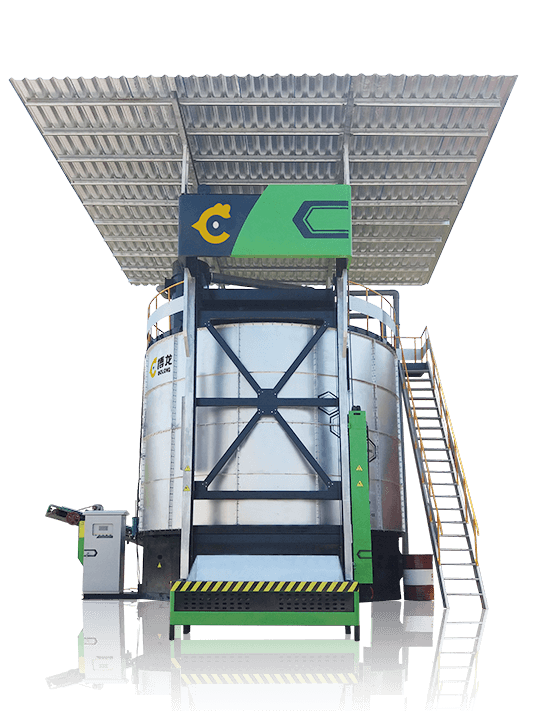

Food waste compost tank
Treatment of kitchen waste and other household waste into harmless organic fertilizer
Advantages and characteristics
A design and development team that strives for perfection

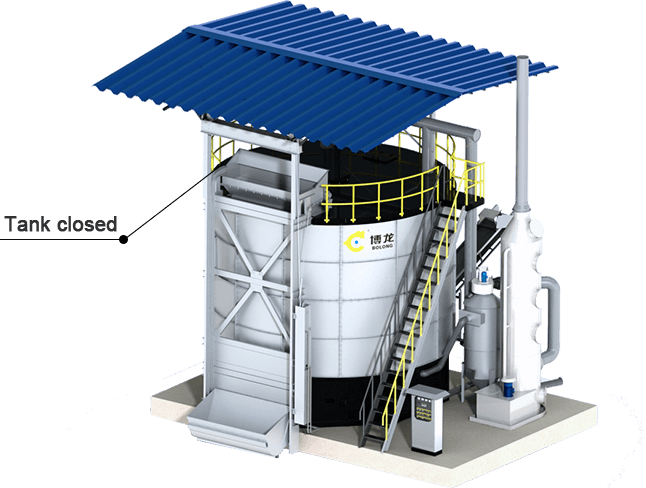

Tank closed
Thermal insulation
Drive processing
Energy saving settings
Long life
Easy to use
Save area

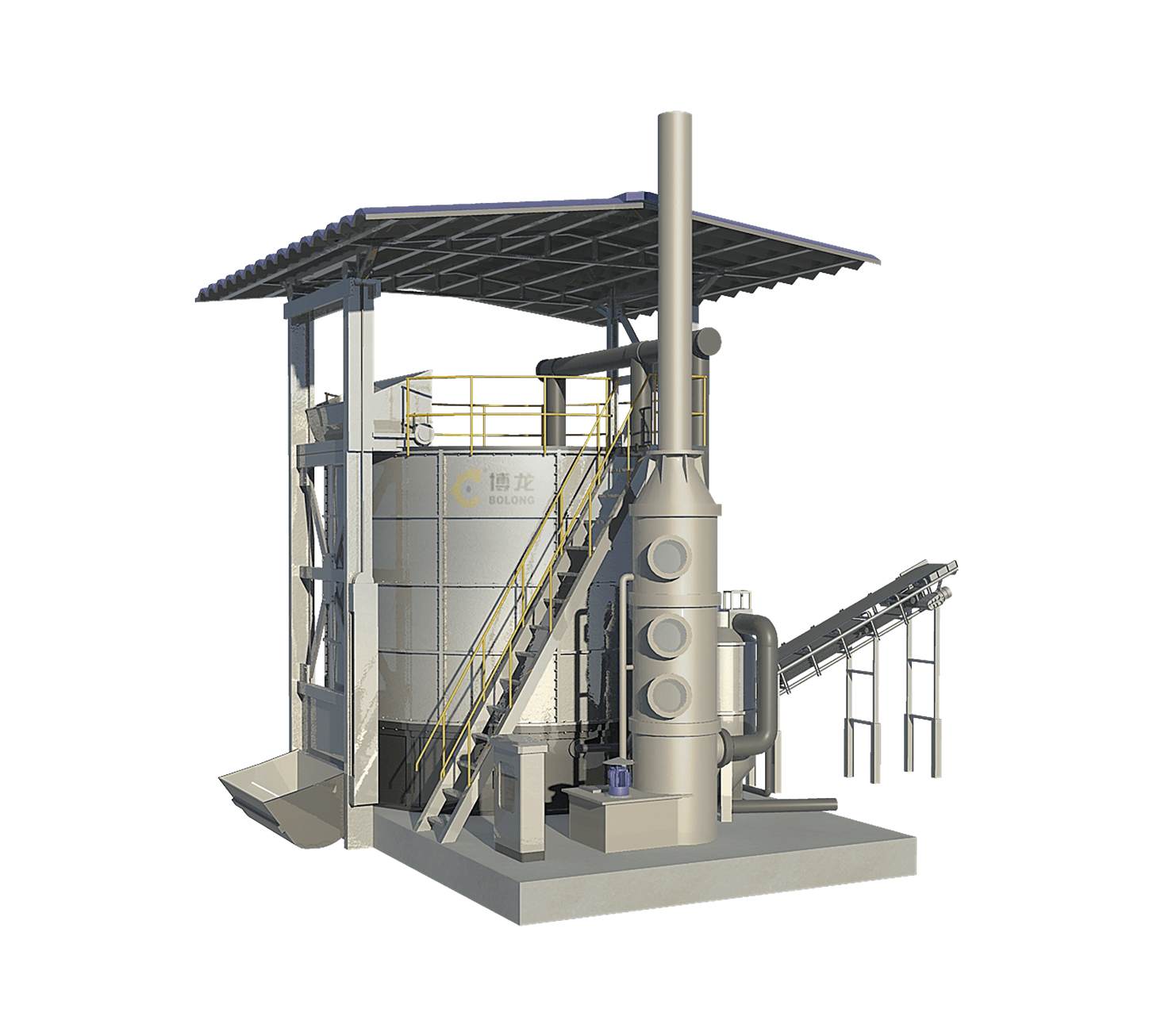

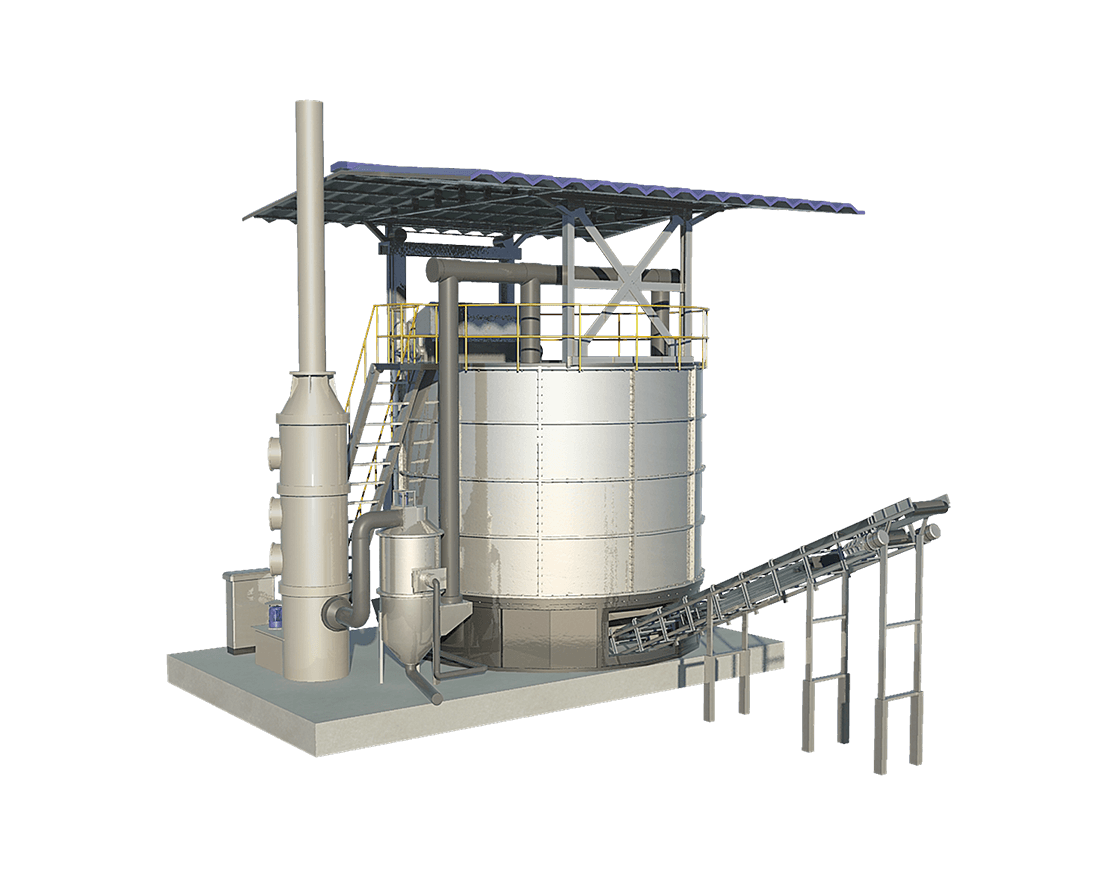

Model One
Model two
Model Three
Parameter information
Tank diameter (mm)

5500
Tank height (mm)

8440
Tank volume height (mm)

3900
Minimum floor area (M2)

55
Tank volume (M3)

86
Bottom bolwer (kW.h)

11*2
Treatment capacity (m3 / day)

(including 50-70% water content)

7~10
Output (m3 / day)

(about 30% water content)

3~4.5
Power Supply

380V50Hz
Daily water consumption m³ (kW.h)

1
Hopper volume

1.35
Hydraulic station (kw)

7.5+2.2
Lnudced draft fan(kW.h)

3
Spry Tower(kW.h)

1.5
Auxiliary heater(kW.h)

4
Discharge device(kW.h)

2.2
Installed Power

43.5
40.9 Operating power(kW.h)

About 25
Parameter information
Tank diameter (mm)

6000
Tank height (mm)

8440
Tank volume height (mm)

3900
Minimum floor area (M2)

60
Tank volume (M3)

102
Bottom bolwer (kW.h)

12.5*2
Treatment capacity (m3/day)

(including 50-70% water content)

8~12
Output (m3/day)

(about 30% water content)

4~5
Power Supply

380v50Hz
Daily water consumption m³ (kW.h)

1
Hopper volume

1.35
Hydraulic station (kW.h)

7.5+2.2
Lnudced draft fan(kW.h)

3
Spry Tower(kW.h)

1.5
Auxiliary heater(kW.h)

4
Discharge device(kW.h)

2.2
Installed Power

46.5
40.9 Operating power(kW.h)

About 27
Parameter information
Tank diameter (mm)

6000
Tank height (mm)

9000
Tank volume height (mm)

4500
Minimum floor area (M2)

60
Tank volume (M3)

102
Bottom bolwer (kW.h)

12.5*2
Treatment capacity (m3/day)

(including 50-70% water content)

8~14
Output (m3/day)

(about 30% water content)

4~5
Power Supply

380v50Hz
Daily water consumption m³ (kW.h)

1
Hopper volume

1.35
Hydraulic station (kW.h)

7.5+2.2
Lnudced draft fan(kW.h)

3
Spry Tower(kW.h)

1.5
Auxiliary heater(kW.h)

4
Discharge device(kW.h)

2.2
Installed Power

46.5
40.9 Operating power(kW.h)

About 27
Parts introduction

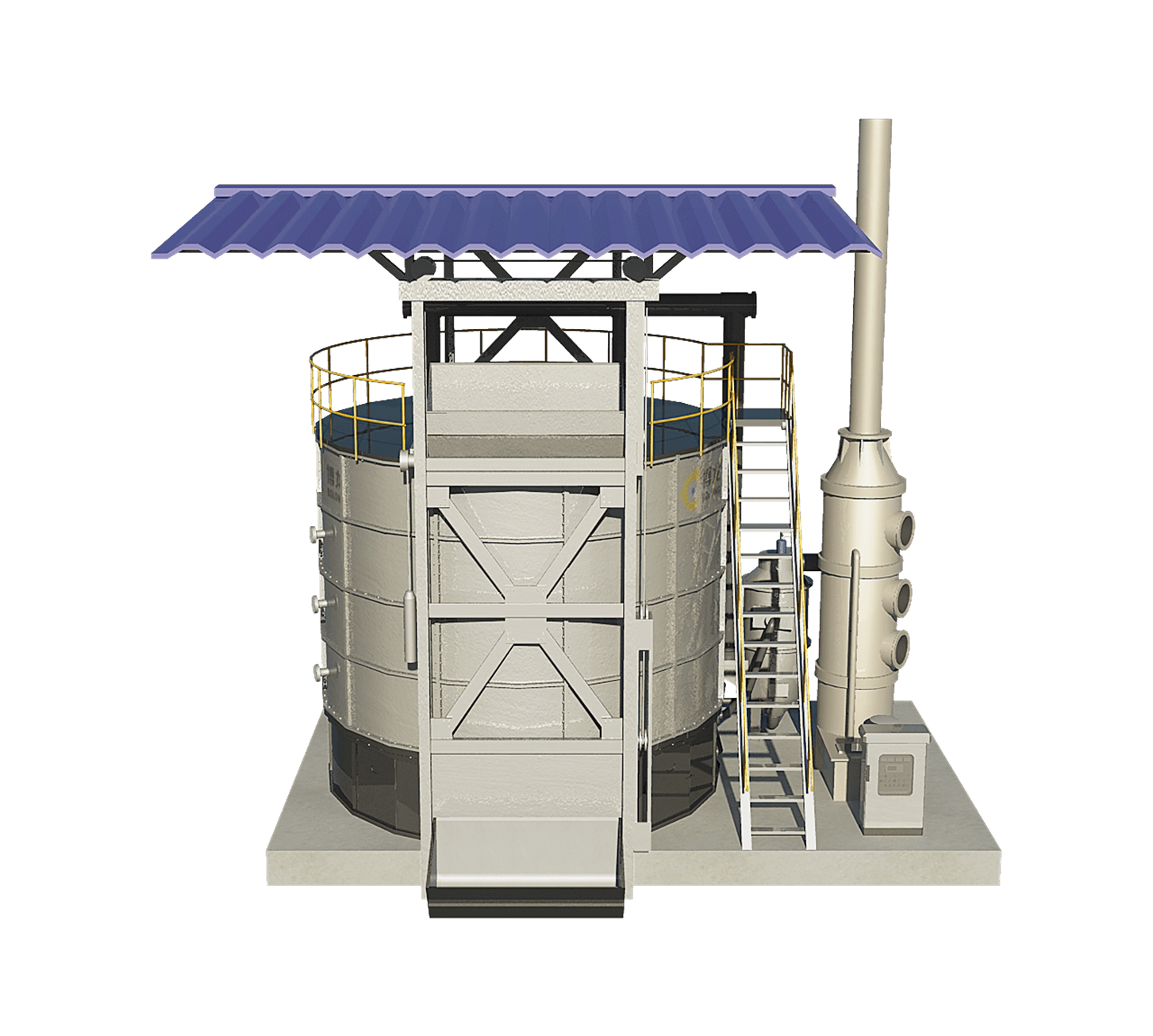

The whole equipment structure is divided into three parts

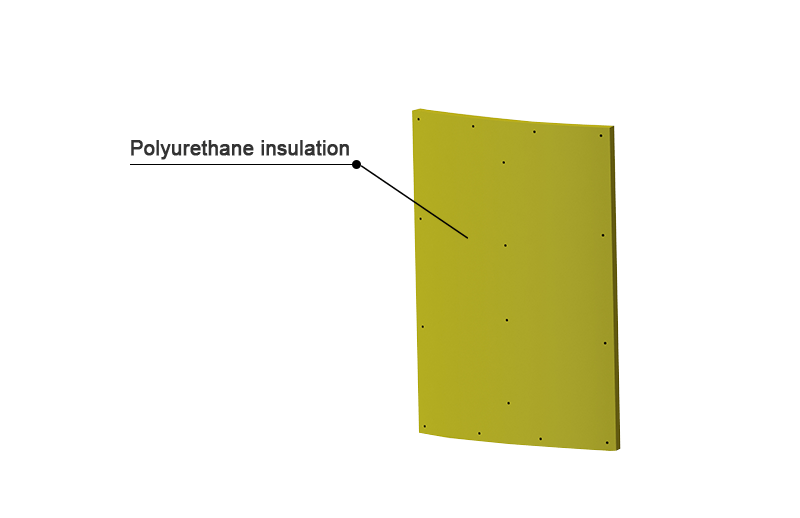

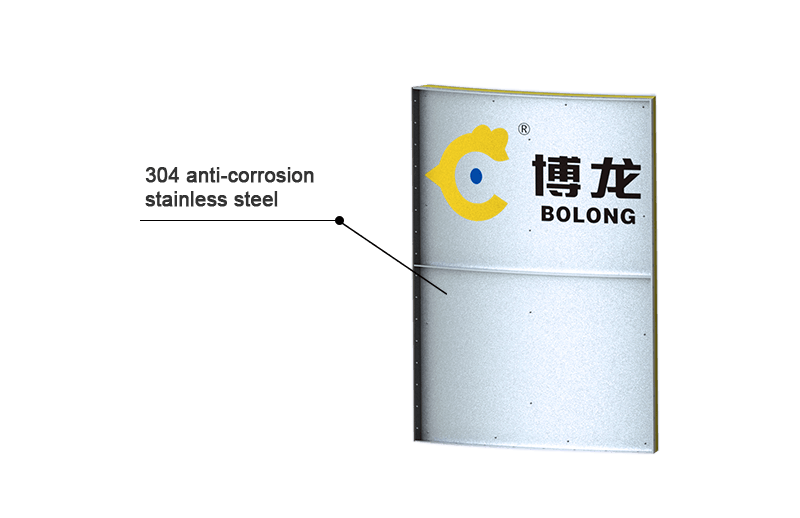

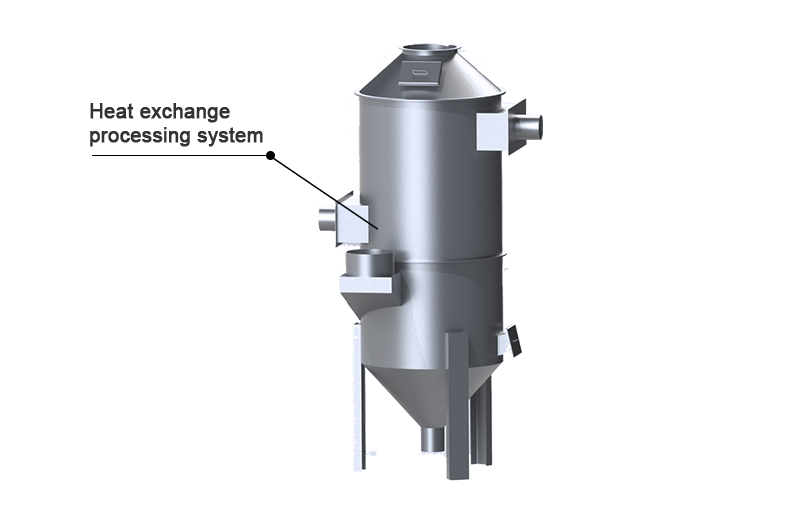

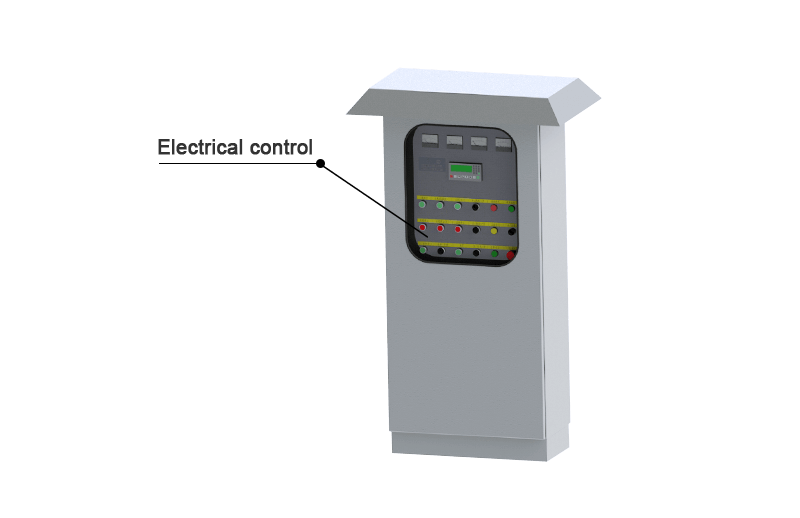

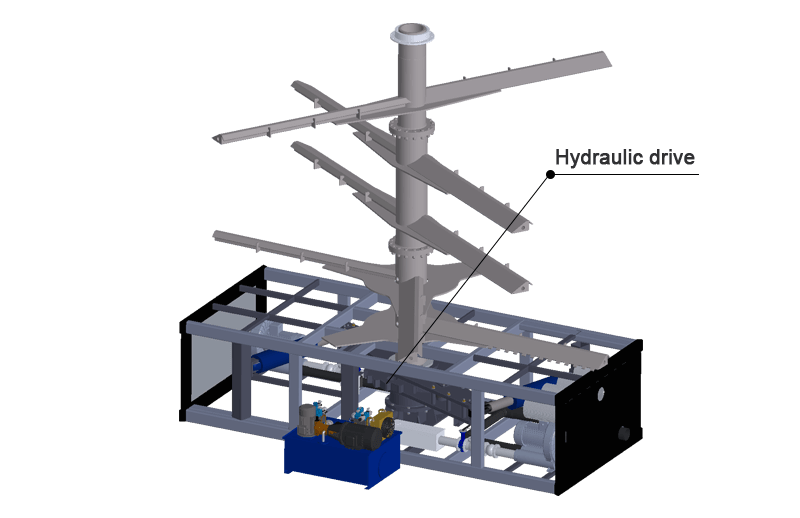

The lower base part is distributed with hydraulic stations, scroll air pumps, oil cylinders, heating systems and stirring shafts, etc.; the middle part is a double-layer insulated tank, equipment automatic control system, export device, etc. The inner wall of the tank is lined with 304 stainless steel. Effectively prolong the life of the tank and reduce the residual clinkerThe lower base part is distributed with hydraulic stations, scroll air pumps, oil cylinders, heating systems and stirring shafts, etc.; the middle part is a double-layer insulated tank, equipment automatic control system, export device, etc. The inner wall of the tank is lined with 304 stainless steel, effectively prolong the life of the tank and reduce the residual clinker. There is an insulation layer filled with polyurethane foaming agent in the middle, and the outer wall is made of thickened steel plate to support the tank. The upper part is composed of shelters, detection platforms and exhaust facilities. The ancillary equipment includes automatic tipping bucket elevator, exhaust gas filtering and deodorizing system and heat exchange system device.

Upper part
Central

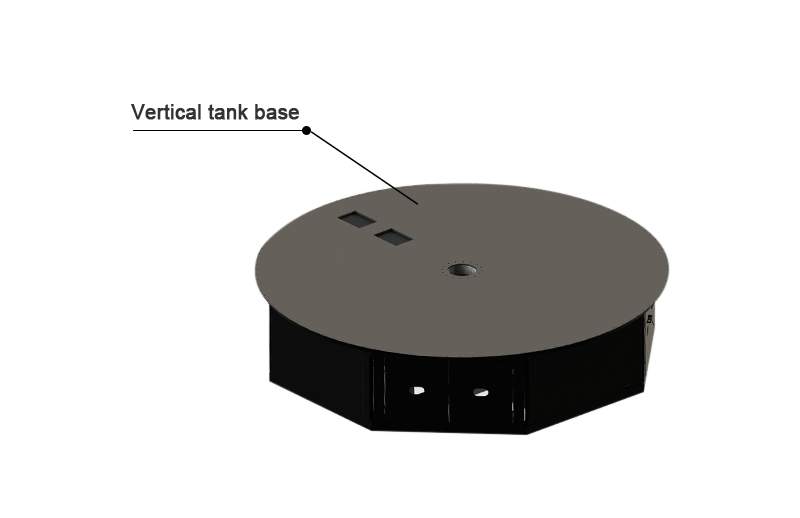

Bottom base
Operation principle
Scope of application(raw material)
Livestock manure
Livestock and poultry carcasses
Food waste
Biogas residue
Mushroom residue
Municipal sludge
Crop straw
