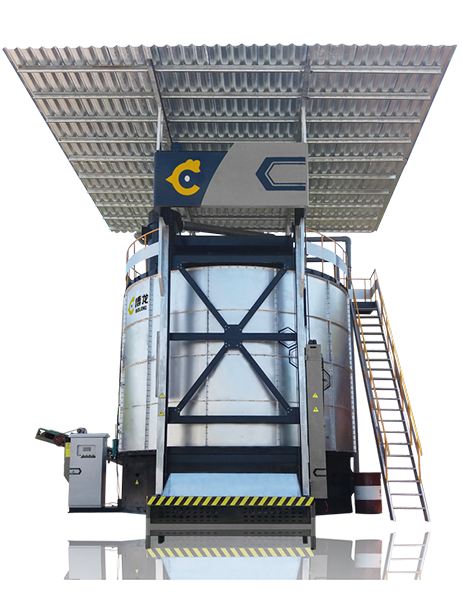

China Top Fertilizer Fermentation Tank Manufacturer

As a professional organic fertilizer Fermentation equipment manufacturer and factory. BoLong have focused on the production of fertilizer Fermentation equipment for more than 30 years. Our Fertilizer Fermentation Tank can treat poultry manure and animal carcasses, such as chicken, pig, cow and sheep manure, as well as organic waste, such as household garbage, kitchen garbage, river sludge, sewer sludge, mushroom residue and crop straw.

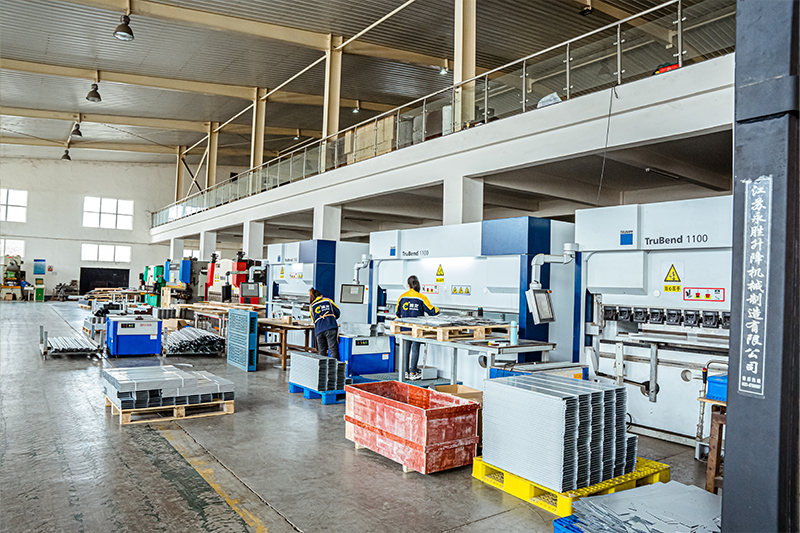

After years of reform and developments, Bolong Group has a standardized heavy industrial plant of 60000 square meters. At the same time, we have introduced international advanced large and medium-sized processing technology and equipment. Such as German TRUMPF laser cutting machine, TRUMPF laser pipe cutting machine, KUKA robot, Japanese Yaskawa robot, OTC robot, etc.

Ask for Quote

Get A Free Quote

We will ensure that your privacy is protected and will respond to you as soon as possible.

Name

* Email

Phone

* Your Message

Types of Fertilizer Compost Tank

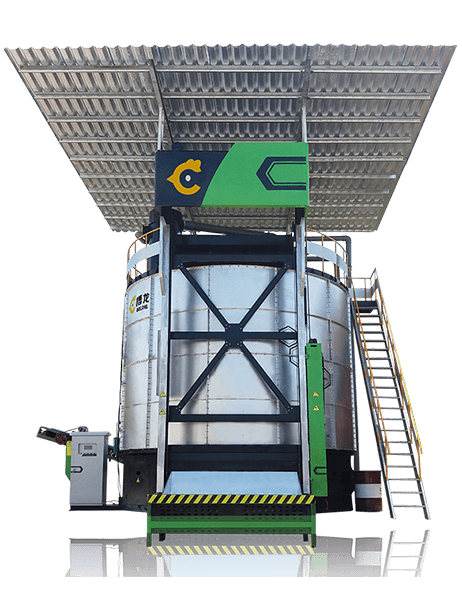

11FFG-90 Compost Tank

1. Tank Diameter: 5500mm, Total Height: 8440mm, Tank Height: 3900mm, Minimum Footprint:55㎡
2. Tank Volume: 86m³, Daily Water Consumption: 1m³, Hopper Volume: 1.35m³, Handing capacity: 7-10m³/Day(containing 50-70% moisture manure, animal carcasses), Output Capacity: 3-4.5m³/day(water content about 30%)
3. Power Supply: 380V50Hz, Bottom Blower: 11*2KW, Hydraulic Station: 7.5+3KW, Induce Draft Fan: 3KW, Spray Tower: 1.5KW, Auxiliary Heater: 4KW, Discharge Device: 2.2KW, Installed Power: 43.5KW, Operate Power: About25KW

Get Quotation Now!

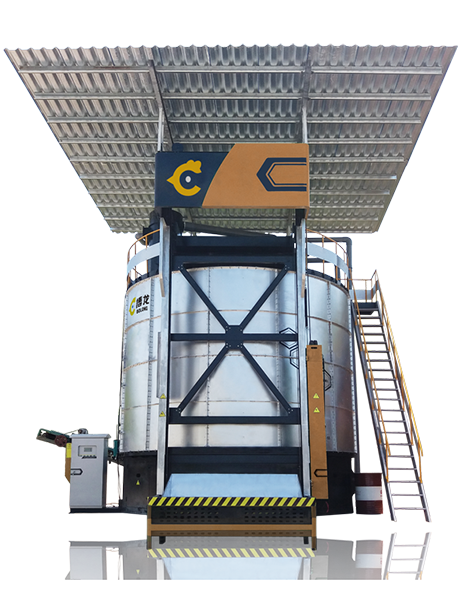

11FFG-102 Compost Tank

1. Tank Diameter: 6000mm, Total Height: 8440mm, Tank Height: 3900mm, Minimum Footprint:60㎡
2. Tank Volume: 102m³, Daily Water Consumption: 1m³, Hopper Volume: 1.35m³, Handing capacity: 8-12m³/Day(containing 50-70% moisture manure, animal carcasses), Output Capacity: 4-5m³/day(water content about 30%)
3. Power Supply: 380V50Hz, Bottom Blower: 12.5*2KW, Hydraulic Station: 7.5+3KW, Induce Draft Fan: 3KW, Spray Tower: 1.5KW, Auxiliary Heater: 4KW, Discharge Device: 2.2KW, Installed Power: 46.5KW, Operate Power: 27KW

Get Quotation Now!

11FFG-280 Compost Tank

1. Tank Diameter: 9000mm, Total Height: 8440mm, Tank Height: 4500mm, Minimum Footprint:100㎡
2. Tank Volume: 280m³, Daily Water Consumption: 2m³, Hopper Volume: 1.6m³, Handing capacity: 20-28m³/Day(containing 50-70% moisture manure, animal carcasses), Output Capacity: 8-12m³/day(water content about 30%)
3. Power Supply: 380V50Hz, Bottom Blower: 12.5*6KW, Hydraulic Station: 11+4KW, Induce Draft Fan: --KW, Spray Tower: 1.5*2KW, Auxiliary Heater: 12KW, Discharge Device: 2.2*2KW, Installed Power: 110KW, Operate Power: 95KW

Get Quotation Now!

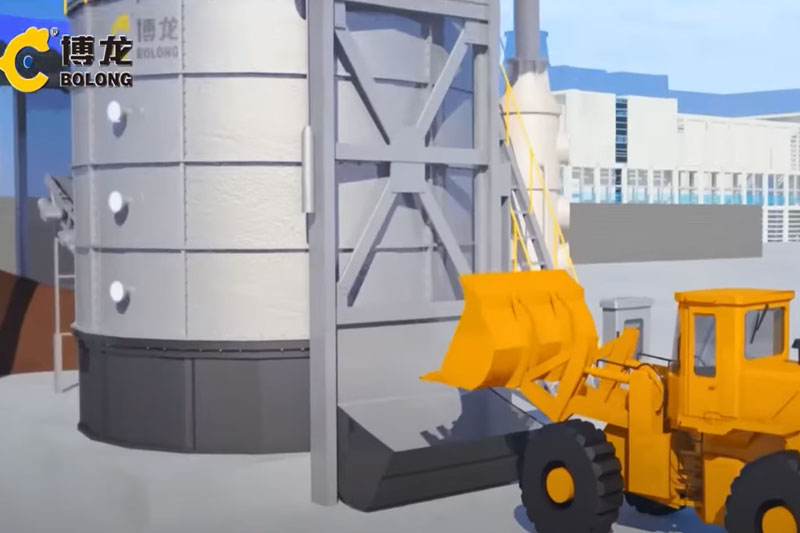

Working Principle of Manure Fertilizer Fermentation Tank

The equipment adopts the aerobic fermentation principle of aerobic microorganisms, so that the microorganisms use the organic matter and residual protein in livestock and poultry manure and kitchen waste to rapidly multiply under a certain temperature, hums and sufficient oxygen environment, there realizing the organic waste Harmless treatment.

It is a continuous system where waste can be thrown in every day and organic fertilizers are produced every day. The bucket elevator lifts the organic waste and automatically puts it into the (tank). Organic waste is mixed in the tank by stirring blades. A special heat exchanger uses the heat of the exhaust gas to heat the fresh air and let it enter the tank, and the hot air is blown out from the holes in the blades. The warm air accelerates the aerobic fermentation of organic waste and the evaporation of water. After an average of 7 days, the organic waste is converted into high-quality organic fertilizer.

Get An Instant Quote

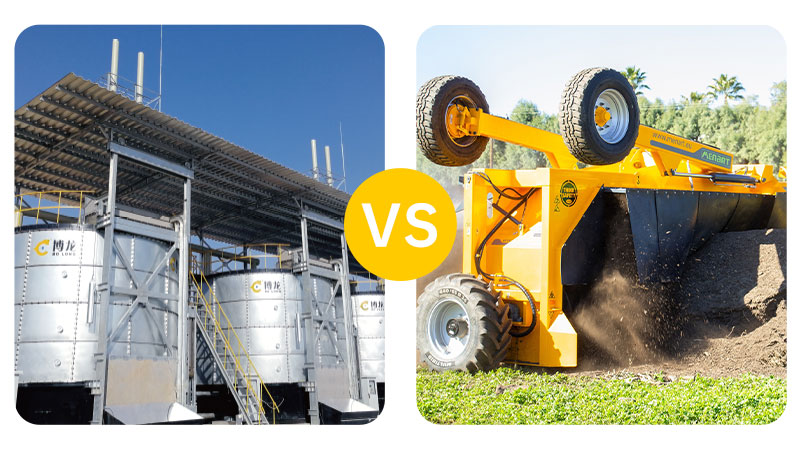

What Are The Advantages Over Compost Turner

Less Space Demand and Environmental Protection

Compared with the traditional organic fertilizer fermentation method, Bolong fermentation tank has a smaller footprint. It is a vertically closed stainless steel tank with an area of only 60-80㎡.The closed fermentation system produces very little odor and dust, and the ammonia produced by the fermentation is able to be discharged directly through the deodorizing device.

Get Quotation in 6 Hour!

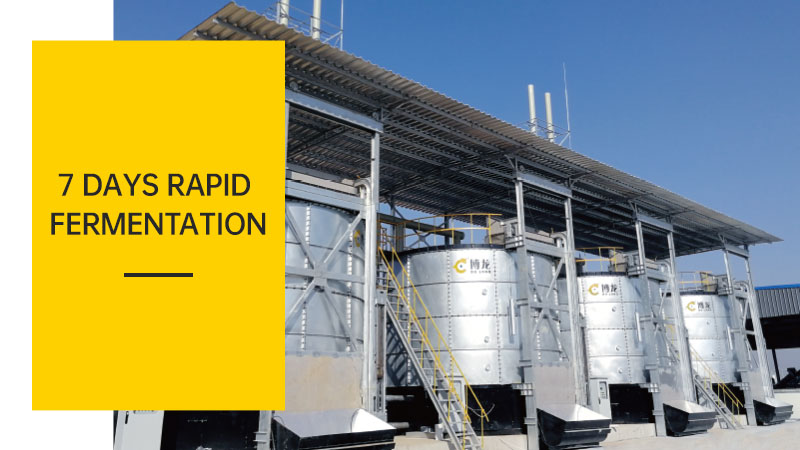

Time-Saving And High-Efficient

The fermentation time of the fertilizer fermenters is relatively short. In the traditional method, it takes about 20 days to compost organic matter with a turner. However, if you use a Bolong fermentation tank to compost organic matter, the first fermentation process will last about 7 days, with subsequent daily drop-offs and outputs continuing. Fermentation tanks for Bolong fertilizer production are more efficient than compost turners.

Get Quotation in 6 Hour!

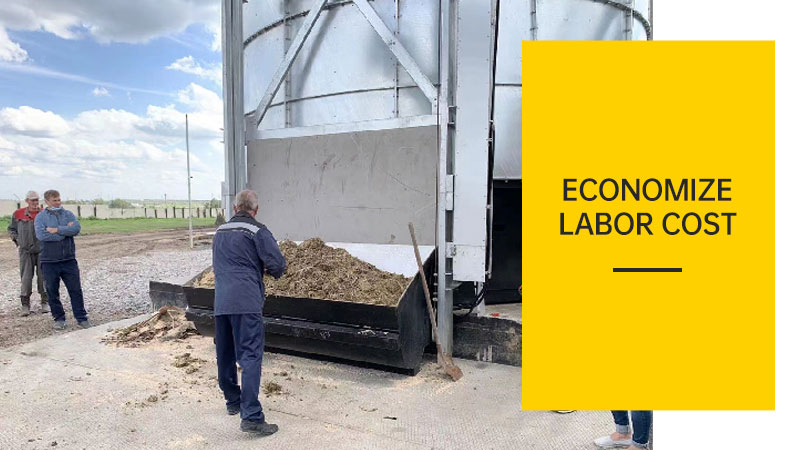

Easy Operation

Bolong fermentation tank is easy to operate. In the traditional organic fertilizer fermentation process, many laborers need to be employed to work. Bolong fermentation tank is electrically controlled with PLC chip automatic and manual control system, one person can operate one or more organic fertilizer fermentation tanks at the same time, which saves labor cost.

Get Quotation in 6 Hour!

Good Adaptability

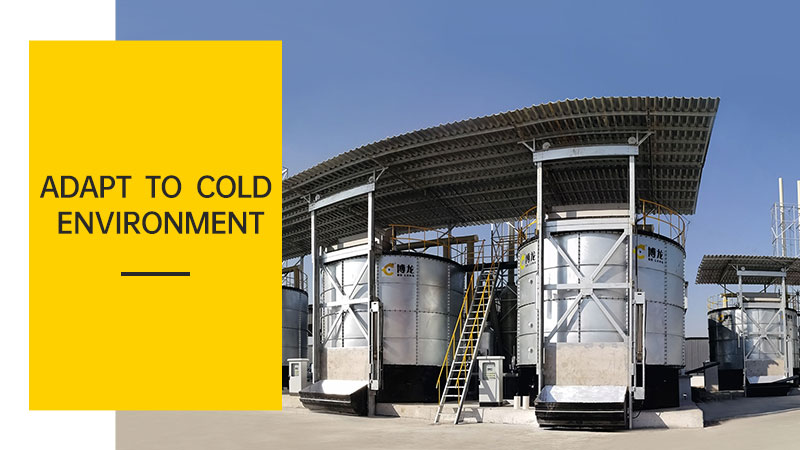

Bolong fermentation tank is widely adaptable. In the traditional way, you can't make organic fertilizer compost in winter in northern areas and high altitude. However, with Bolong fermentation tank, the inner wall is all made of 304 stainless steel, which is anti-corrosive and uses high-performance insulation materials, which is less affected by the environment and can make organic fertilizer regardless of the region and season. We have successful cases in Siberian region and Southeast Asia for your reference.

Get Quotation in 6 Hour!

Henan Bolong Co. LTD

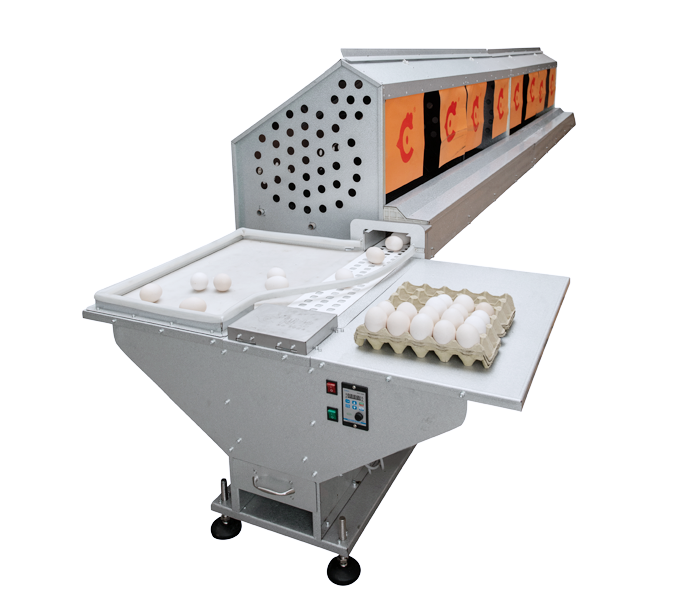

Bolong Group was founded in 1993, after thirty years of vigorous development, it has developed into a large modern broiler breeding enterprise integrating broiler breeding, egg supply and hatching of chicks, with six all-in, all-out broiler breeder farms, a large hatchery, a feed factory, a large livestock machinery company and a bio-organic fertilizer factory as well as an experimental farm. We have successfully developed automatic egg collection equipment and livestock waste harmless treatment equipment, and obtained a number of national patents, and now have more than 30 utility model patents developed independently.

Get An Instant Quote

1993

Established

1000+

Production Equipment

1000

Enterprise's Trust

60000㎡

Production Workshop

What Makes Bolong Different?

Research and development, manufacturing and technical services as one of the technology-based manufacturing enterprises.

Lean Processing

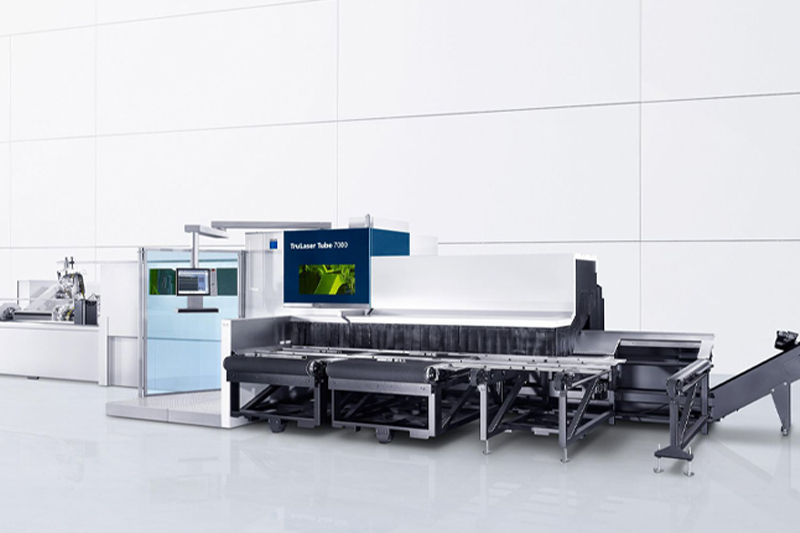

The company introduced the first domestic TruLaser Tube 7000 fiber, two laser cutting machines with 0.03mm error to ensure the high finish of the cutting surface and guarantee the quality and quantity delivery of each order.

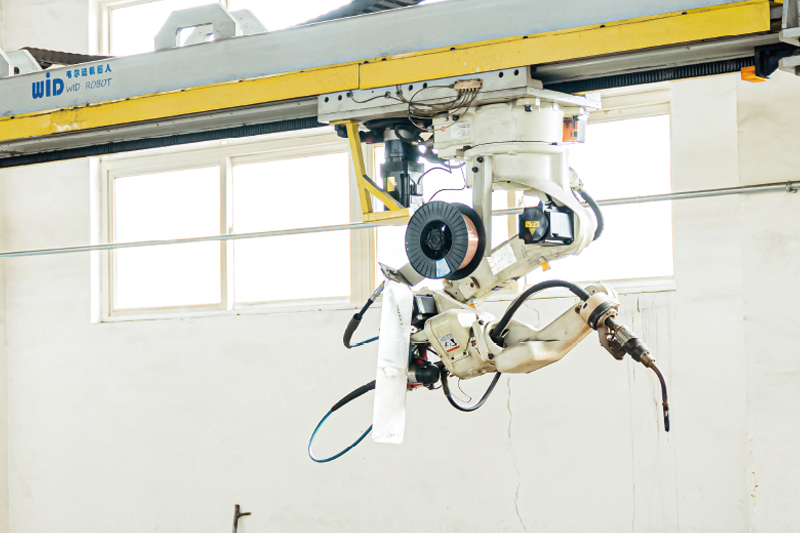

Automatic Welding Robot

The company has 10 Japanese Yaskawa welding robots, 5 OTC welding robots and 6 domestic welding robots. Each welding workpiece has a special welding tooling to ensure the standardization of welding.

Automatic Production Line

Adopting fully automatic production line, it can realize the capacity of 1000 units per year, integrating fully automatic cutting, welding and finishing.

Advanced Quality Management System

Advanced quality management system, professional testing capability, and passed the EU CE certification.

Possessing National Certificates

Our company has the certificate of high-tech enterprise issued by the state and the certificate of energy-saving and environmental protection products of China issued for our high-temperature aerobic fermentation tank.

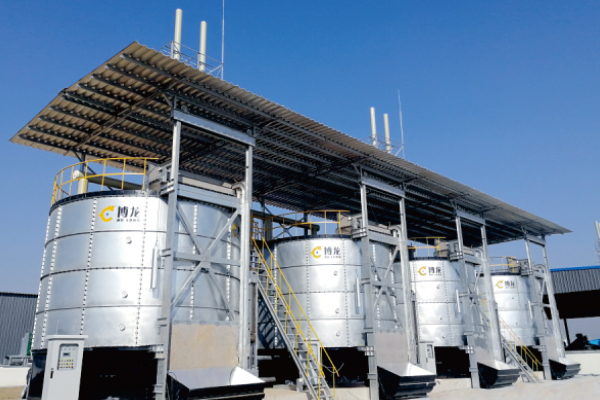

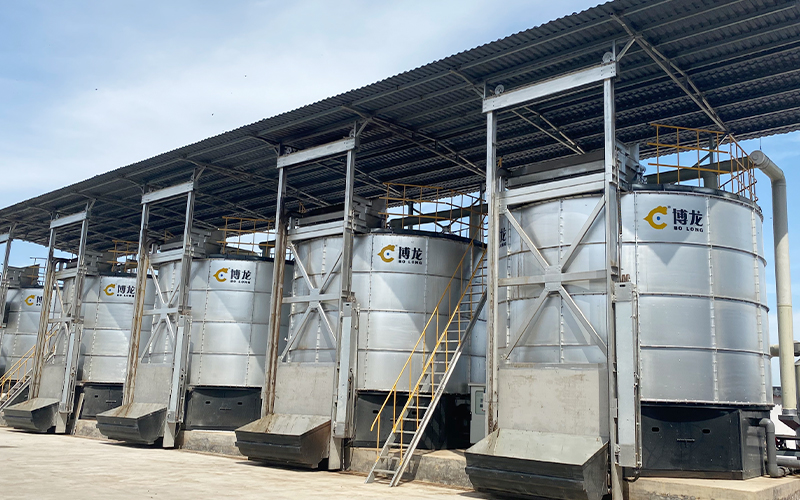

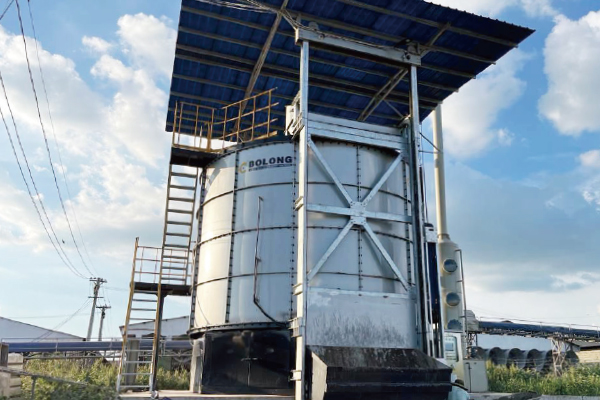

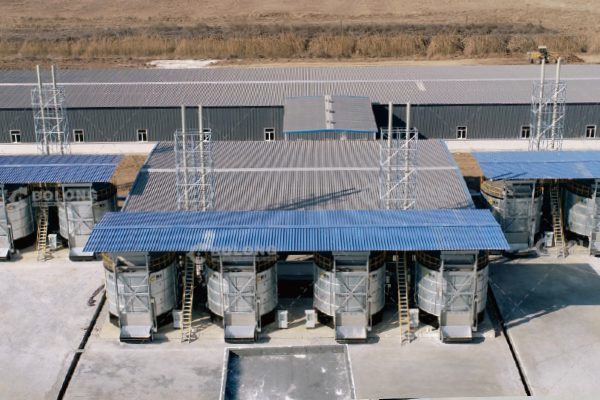

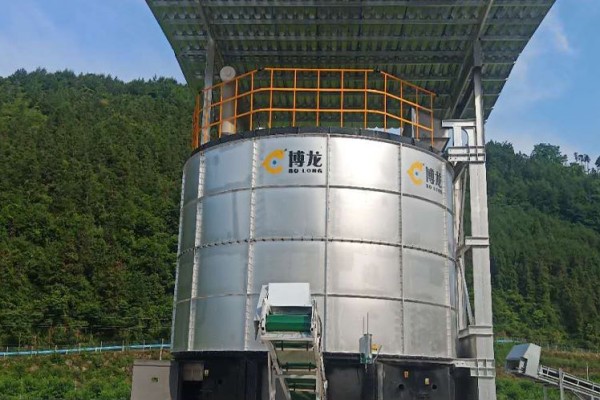

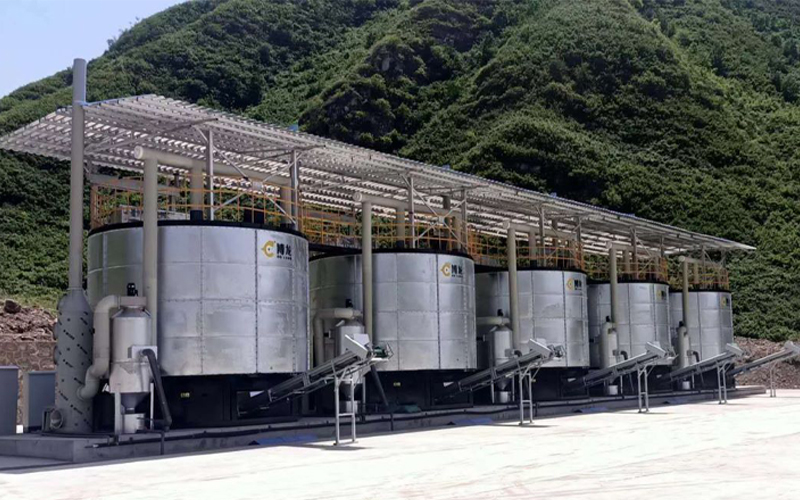

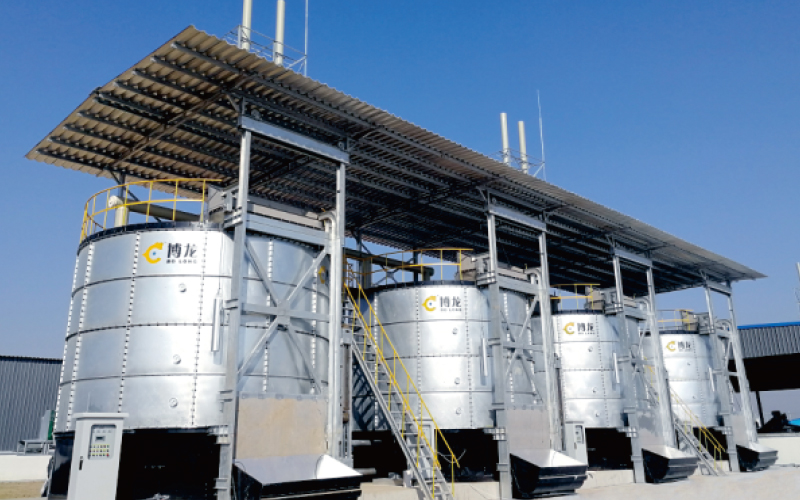

Successul Fermentation Tank Cases
